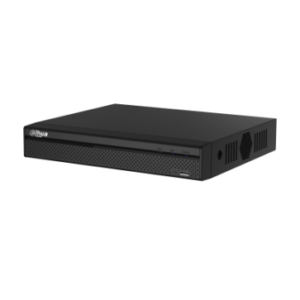

XVR5116HS-S2 16 Channel Penta-brid 1080P Compact 1U Digital Video Recorder جهاز تسجيل 16 مخرج 5 ميجا دهوا
Roll over image to zoom in
10,000.00 EGP
16 Channel Penta-brid 1080P Compact 1U Digital Video Recorder
> Embedded processor
> H.264+/H.264 video compression
> Support HDCVI/AHD/TVI/CVBS/IP video inputs
> Max 6/12/24 channels IP camera inputs, each channel up
> Smart Search and Intelligent Video System
Compare
Product Description
System | |
| Main Processor | Embedded Processor |
| Operating System | Embedded LINUX |
Video and Audio | |
| Analog Camera Input | 4/8/16 Channel, BNC |
| HDCVI Camera | 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps |
| AHD Camera | 4MP, 1080P@25/30, 720P@25/30fps |
| TVI Camera | 4MP, 1080P@25/30, 720P@25/30fps |
| CVBS Camera | PAL/NTSC |
| IP Camera Input | 4+2/8+4/16+8 Channel, each channel up to 5MP |
| Audio In/Out | 1/1, RCA |
| Two-way Talk | Reuse audio in/out, RCA |
Recording | |
| Compression | H.264+/H.264 |
| Resolution | 4M-N, 1080P, 1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF |
| Record Rate | Main stream: 4M-N/1080P(1~15fps); 1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps) Sub steram: D1/CIF/QCIF(1~15fps) |
| Bit Rate | 1Kbps ~ 6144Kbps Per Channel |
| Record Mode | Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop |
| Record Interval | 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec |
Display | |
| Interface | 1 HDMI ,1 VGA |
| Resolution | 1920×1080, 1280×1024, 1280×720, 1024×768 |
| Multi-screen Display | When IP extension mode not enabled: 4CH: 1/4 8CH: 1/4/8/9 16CH: 1/4/8/9/16 When IP extension mode enabled: 4CH: 1/4/6 8CH: 1/4/8/9/16 16CH: 1/4/8/9/16/25 |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
Network | |
| Interface | 4/8CH: 1 RJ-45 Port (100M) 16CH: 1 RJ-45 Port (1000M) |
| Network Function | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Support Dahua IP camera, DVR, NVS, etc.) |
| Max. User Access | 128 users |
| Smart Phone | iPhone, iPad, Android |
| Interoperability | ONVIF 2.42, CGI Conformant |
Video Detection and Alarm | |
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis |
| Alarm input | N/A |
| Relay Output | N/A |
Playback and Backup | |
| Playback | 4CH: 1/4 8CH: 1/4/9 16CH: 1/4/9/16 |
| Search Mode | Time /Date, Alarm, MD and Exact Search (accurate to second) |
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom |
| Backup Mode | USB Device/Network |
Storage | |
| Internal HDD | 1 SATA Port, up to 8TB capacity |
| eSATA | N/A |
Auxiliary Interface | |
| USB | 4/8CH:2 USB 2.0 16CH:1 USB 2.0 , 1 USB 3.0 |
| RS232 | N/A |
| RS485 | 1 Port, for PTZ Control |
Electrical | |
| Power Supply | DC12V/2A |
| Power Consumption | <10W (Without HDD) |
Construction | |
| Dimensions | Compact 1U, 260×236×48mm(10.2″×9.3″×1.9″) |
| Net Weight | 0.75kg ( 1.7lb) (without HDD) |
| Gross Weight | 1.5kg (3.3lb) |
| Installation | Desktop installation |
Environmental | |
| Operating Conditions | -10°C ~ +55°C (+14°F ~ +131°F), 0~ 90% RH |
| Storage Conditions | -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH |
Third-party Support | |
| Third-party Support | Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more |
Certifications | |
| Certifications | FCC: Part 15 Subpart B |
| CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 | |
| UL: UL 60950-1 | |
