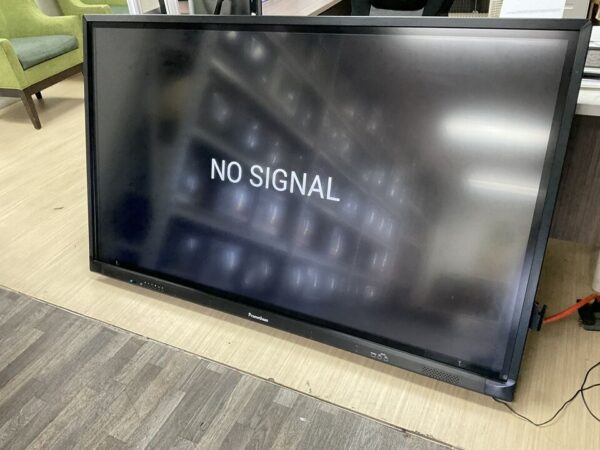

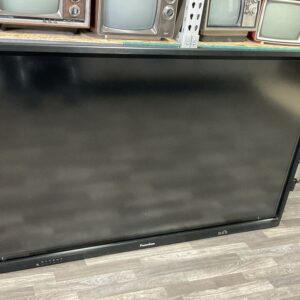

Promethean AP4-70E ActivPanel, Interactive Flat Panel, 70″ Inch شاشة 70 بوصة Used
Roll over image to zoom in
Description

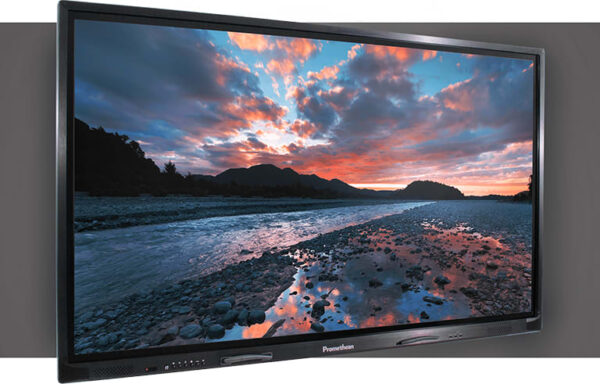

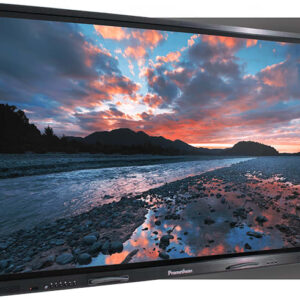

Promethean AP4-70E ActivPanel, Interactive Flat Panel, 70″
The Powerfully intelligent, connected hub of the classroom
The Promethean AP4-70E 70-inch award-winning ActivPanel is powered by a revolutionary, upgradeable Android processor that transforms the traditional projection display into an intelligent hub that unleashes the power of teacher and student connectivity.
The all-new Promethean ActivPanel creates a captivating, tablet-like surface for the front of classroom. Powered by Promethean’s ActivConnect Android processor, it enhances the teaching and learning experience providing instant access to educational apps, wireless connectivity, mobile device mirroring and more.
The Power of Apps: Access the vast, ever-expanding world of over 500,000 educational apps. Easily download your favorite apps directly from your home screen.
The Power of Connectivity: Create a collaborative learning environment by accessing a Wi-Fi or Wi-Fi hotspot to mirror and share content from anywhere in the room. Mirror mobile devices to the ActivPanel to share content. Additionally, you can create, save, and share digital notes with the entire class.
The Power of Extension: Expand the teaching and learning possibilities by incorporating Bluetooth-connected devices such as musical keyboards, digital lab sensors, and droids/robots to support STEM / STEAM education.
The Power of Upgradability: Modernize your classroom at the rate of technology innovation. With its revolutionary external Android processor design (ActivConnect TM ), the processor capacity of the new Promethean ActivPanel can be easily upgraded over time to keep pace with frequent advances in computing technology.
The Power of Usability: Access your favorite apps with ease, switch between applications or customize your home page the way you want. ActivPanel’s user interface is designed to make learning both fun and engaging.
Manufacturer Specs
| Model: AP4-70E Specifications | |
| Display | |
| Diagonal Size | 70″ |
| Screen Type | TFT LCD (Direct LED Backlight) |
| Aspect Ratio | 16:9 |
| Display Area | 1540 x 876 mm (61 x 35 in) |
| Resolution | Full HD 1080 p (1920 x 1080 px @ 60 Hz) |
| Response Time | 6 ms |
| Refresh Rate | 60 Hz |
| Display Colors | 1.07B (10-bit) |
| Contrast Ratio | 4000:1 |
| Viewing Angle | 178º |
| Backlight Lifetime | Up to 50,000 hrs |
| Child Lock Option | Yes |
| Connectivity | |
| HDMI 2.0 | 1 |
| USB Touch | 2 (source switched) |
| VGA | 2 (D-sub), 1 out |
| YPbPr | 1 |
| CVBS | 1 |
| PC Audio (3.5 mm) | 2 |
| Headphone | 1 |
| USB 2.0 | 3 |
| USB 3.0 | 1 |
| RS232 Serial | 1 |
| OPS Slot | 1 |
| Audio | |
| Speakers | Front-facing stereo speakers |
| Power | 2 x 10 W |
| External Android | |
| System Version | Android 5.1 Lollipop |
| CPU | Rockchip RK3368 Octa Core Up to 1.5 GHz |
| GPU | SGX6110; support 4K*2K H.265/H.2642GB 2GB DDR3 |
| RAM | 2 GB |
| Internal Storage | 16 GB |
| Power | |
| Power Requirements | 100V – 240V AC |
| Power Consumption (Normal) | < 190 W |
| Power Consumption (Standby) | < 0.5 W |
| Ultra-Quiet Fanless Design | Yes |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 55°C (-4°F to 140°F) |
| Operating Humidity | 20% to 85% humidity |
| Storage Humidity | 10% to 80% humidity |
| Interactivity | |
| Compatibility | Windows® 7 to 10 Mac OS® X 10.6 – 10.11 Linux® Ubuntu 12.04 -14.04 Chromebook™ with touch |
| Continuous Touch Points | 10 |
| Digital Pen | 1 |
| USB HID Pen Compatible | Yes |
| Gestures and Edge Swipes | Win 8.1 Optimized and MacBook® |
| Touch Technology | Infrared |
| Touch Resolution | 32,767 x 32,767 px |
| Bezel Size | 25 mm |
| Positioning Accuracy | 3 mm approx. |
| Tracking Rate | 400 in/sec |
| First Touch & Subsequent Response | 7.2 ms |
| Digital Pen | |
| Pen Function | HID pen digitizer or mouse independent and non-concurrent of touch |
| Left / Right Click | Mechanical tip switch / barrel button |
| Hover | Yes |
| Battery / Life | AAA non-rechargeable (> 1 year) |
| Pen Storage | Pen holder attached to ActivPanel to protect pen and preserve battery life |
| Stand Options | |
| Fixed Wall Mount | Included in box |
| Non-Adjustable Mobile Stand | Available in all markets |
| Adjustable Wall Mount and Mobile Stand | Available in specific market |
| Physical Specifications | |
| Overall Dimensions | 1629 x 990 x 103 mm (64 x 39 x 4.1 in) |
| Net Weight | 65 kg (143 lbs) |
| Packed Weight | 80 kg (176.4 lbs) |
| Packed Dimensions | 1856 x 307 x 1150 mm (73.1 x 12.1 x 45.3 in) |

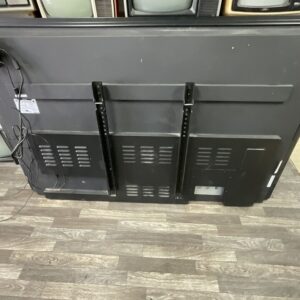

| Vesa Mount Point – Wall/Stand | 6 x M6; VESA 400 x 434 mm (15.7 x 17 in) |
| Standard Warranty | 3-Year Warranty (subject to registration and based on region) |
| Installation | The ActivPanel includes a fixed wall mount system. The installation of this product should be completed by a Trained Promethean Installer. Use of components not supplied by Promethean or not meeting minimum specifications may impact performance, safety and warranty. For more information, visit Support.PrometheanWorld.com. |
