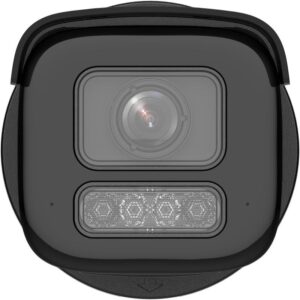

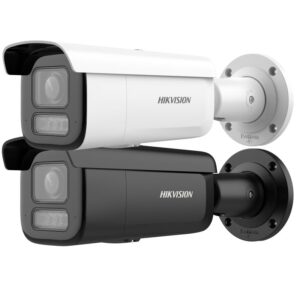

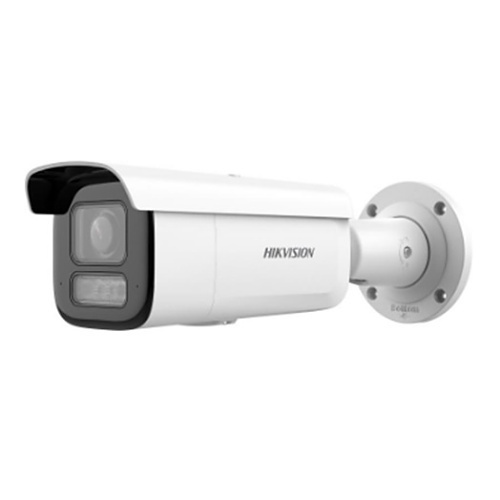

DS-2CD2683G2-LIZS2U – 8 MP Acusense Smart Hybrid Light Motorized Varifocal Bullet Network Camera كاميرا 8 ميجا
14.000,00 EGP
- High quality imaging with 8 MP resolution
- Acusense: Focus on human and vehicle classification based on deep learning
- Smart Hybrid Light: Integrates IR and White lights, 4 supplemental lighting modes
- Built-in arrayed dual-microphone for real-time high quality audio security
- Clear imaging against strong back light due to 120 dB true WDR technology
- Efficient H.265+ compression technology
- Motorized varifocal lens for easy installation and monitoring
- Water and dust resistant (IP67) and vandal-resistant (IK10)
- Order now and your order ships by Tue, Mar 12
- 01009063305
Description
Camera
Image Sensor : 1/2.8″ Progressive Scan CMOS
Max. Resolution : 3840 × 2160
Min. Illumination : Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time : 1/3 s to 1/100,000 s
Day & Night : IR cut filter
Angle Adjustment : Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Lens Type : Varifocal lens, motorized lens, 2.8 to 12 mm
Focal Length & FOV : 2.8 to 12 mm, horizontal FOV 106.5° to 30.2°, vertical FOV 55.7° to 17°, diagonal FOV
128.5° to 34.7°
Lens Mount : Ø 14
Iris Type : Fixed
Aperture : F1.6
DORI
DORI : 2.8 to 12 mm: D: 88.3 m to 289.7 m, O: 35 m to 114.9 m, R: 17.7 m to 57.9 m, I: 8.8 m
to 29.0 m
Illuminator
Supplement Light Range : Up to 60 m
Supplement Light Type : IR, White Light
Smart Supplement Light : Yes
IR Wavelength : 850 nm
Video
Main Stream : 50 Hz:
20 fps (3840 × 2160)
25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
20 fps (3840 × 2160)
30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream :
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream :
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
Video Compression :
Main stream: H.265/H.264/H.264+/H.265+,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264,
*Third stream is supported under certain settings.
Video Bit Rate : 32 Kbps to 16 Mbps
H.264 Type : Baseline Profile, Main Profile, High Profile
H.265 Type : Main Profile
Scalable Video Coding (SVC) : H.264 and H.265 encoding
Bit Rate Control : CBR, VBR
Region of Interest (ROI) : 1 fixed region for main stream and sub-stream
Target Cropping : Yes
Audio
Audio Compression : G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate : 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps
(MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate : 8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering : Yes
Network
Protocols : TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP,
SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP,
WebSocket, WebSockets
Simultaneous Live View : Up to 6 channels
API : Open Network Video Interface (Profile S, Profile G), ISAPI, SDK, ISUP
User/Host : Up to 32 users
3 user levels: administrator, operator, and user
Security : Password protection, complicated password, HTTPS encryption, IP address filter,
Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2/1.3,
WSSE and digest authentication for Open Network Video Interface
Network Storage : NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health
detection are supported.
Client : iVMS-4200, Hik-Connect, Hik-Central
Web Browser : Plug-in required live view: IE 11,
Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+,
Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+
Image Parameters Switch : Yes
Image Settings : Rotate mode
Day/Night Switch : Day, Night, Auto, Schedule
Wide Dynamic Range (WDR) : 120 dB
SNR : ≥ 52 dB
Image Enhancement : BLC, HLC, 3D DNR
Privacy Mask : 8 programmable polygon privacy masks
Interface
Ethernet Interface : 1 RJ45 10 M/100 M self-adaptive Ethernet port
Audio : Built-in Microphone: Dual arrayed-microphone
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input
impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output
impedance: 100 Ω, interface type: non-equilibrium
On-Board Storage : Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Alarm : 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Reset Key : Yes
Event
Basic Event : Motion detection (support alarm triggering by specified target types (human and
vehicle)), video tampering alarm, exception
Linkage : Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm
output, trigger recording, trigger capture
Deep Learning Function
Perimeter Protection : Line crossing, intrusion
Support alarm triggering by specified target types (human and vehicle)
General
Power : 12 VDC ± 25%, 1.08 A, max. 13 W, Ø 5.5 mm coaxial power plug, reverse polarity
protection,
PoE: IEEE 802.3at, Class 4, max. 15 W
Material : Aluminum alloy body
Dimension : 332.8 mm × 97.9 mm × 94.2 mm (13.1″ × 3.9″ × 3.7″)
Package Dimension : 385 mm × 190 mm × 180 mm (15.2″ × 7.5″ × 7.1″)
Weight : Approx. 1531 g (3.4 lb.)
With Package Weight : Approx. 2000 g (4.4 lb.)
Storage Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language : 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian,
Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish,
Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese,
Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function : Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding
Approval
EMC : CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC
61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015
Safety :
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,
LOA: IEC/EN 60950-1
Environment :
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
Protection : IP67: IEC 60529-2013, IK10: IEC 62262:2002
You can purchase directly from our stores, or we can ship the device to you anywhere within Egypt. We work with all shipping companies, and the customer is responsible for covering the full shipping cost based on the rates set by their preferred shipping company.
In the case of shipping, we send the customer full images of the device from all angles through their preferred communication method. If they are satisfied with the device’s condition, they can confirm the order, and we will hand over the device to the shipping company on the same day if possible. The device will be delivered within 2 to 4 business days, unless there is an unexpected delay from the shipping company, which is rare.
We ensure the best packaging and security measures to guarantee that the device reaches the customer without any damage.
Shipping costs range between 40–150 EGP, depending on the shipping company’s rates.
The customer pays the full price of the device upon delivery.
Note: Some new customers may be required to pay the shipping fee in advance as a security measure to confirm the order.
Q: How can I ensure that the device I receive via shipping is free of defects?
A: If you are interested in a device on our website, you can contact us to request it. We will send you detailed images of the device from all angles via Facebook, WhatsApp, email, or any other preferred method. If you are satisfied with the initial condition of the device, you can confirm your order over the phone.
Once confirmed, we will ship the device to you along with an official warranty invoice from our company, covering a testing period of 11 months.
- If the device has any defects or does not match the agreed specifications, you have the right to return it, and we will cover the return shipping costs within 14 days from the date of purchase.
- After 14 days, the device becomes non-returnable, but if any issues arise within the warranty period, you can return the device for repair or replacement through our branches, our shipping representatives, or the agreed delivery method.
- If the exact model is unavailable for replacement, the customer can choose between a similar model or a full refund based on the current market price.
Q: How can I be sure that you will fulfill your promises?
A: We are a well-established company that relies on our reputation in the market. The majority of our sales are through shipping, and we have been in this field for over 20 years. Our longevity in the market is the best proof of our credibility and strong reputation.
We are fully committed to customer satisfaction because our success depends on trust. We have worked hard for 20 years to build our position in the market, and we are dedicated to maintaining our customers’ confidence. Thanks to God’s grace, Al-Handasiya Company is a trusted name in the Egyptian market.
Q: Can I trade in my old laptop for a new one and pay the price difference?
A: Yes, you can! We also offer the option to purchase your old device whether you choose to buy from us or elsewhere—the choice is entirely yours.
Q: Do you offer discounts on your prices?
A: Unfortunately, we do not negotiate prices. We strive to offer the most competitive prices in the market while ensuring the best device condition. Our pricing is set to ensure that our customers always feel they are getting a great deal.
